Mining Equipment Steel Structures & Industrial Assemblies
RoXteel manufactures heavy structural steel assemblies for mining equipment, material handling and processing infrastructure, including conveyor trusses, crusher and screen supports, chutes, hoppers, skid frames and modular processing structures. Built in Arizona for projects nationwide.
Steel Structures for Mining Equipment, Material Handling & Processing Infrastructure
RoXteel manufactures the structural steel around mining material handling, processing, power and site systems, with assemblies designed around the equipment, project scale and transportation plan.
RoXteel's scope is structural steel. Crushers, screens, conveyors and process equipment are supplied by others unless a project scope specifically states otherwise.
Material Handling Structures
Structural steel that moves and holds material across the site.
- Conveyor trusses and supports
- Chutes, hoppers and bins
Processing Equipment Structures
Heavy steel supporting crushing, screening and processing.

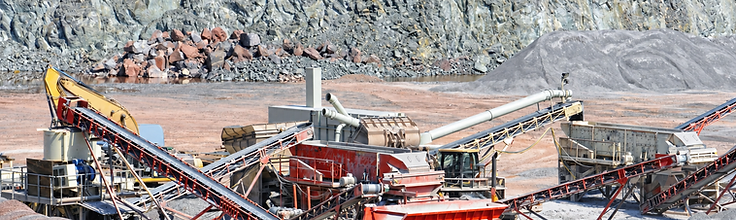

- Crusher and screen support structures

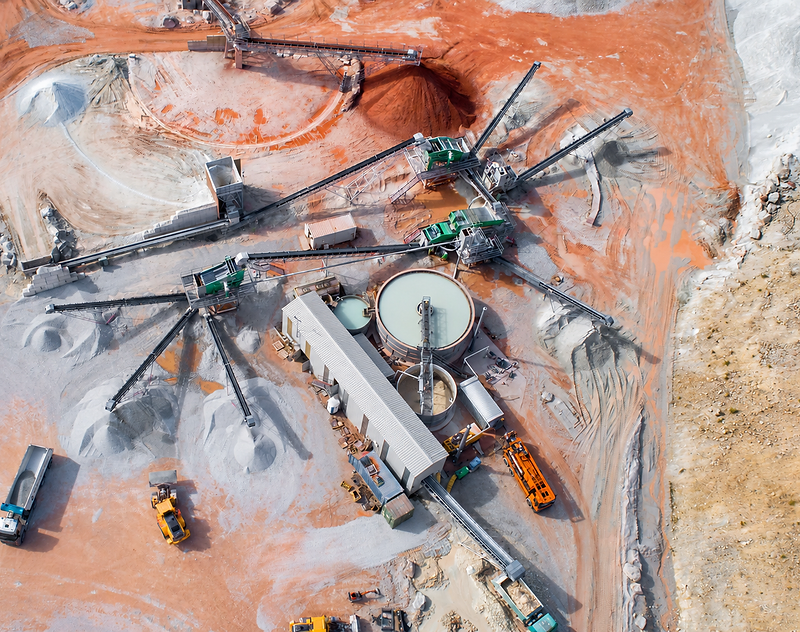

- Modular processing plant frames
- Equipment skid frames
Power, Utility & Site Infrastructure
Structural steel connecting power, water and access.
- E-house and electrical skid frames

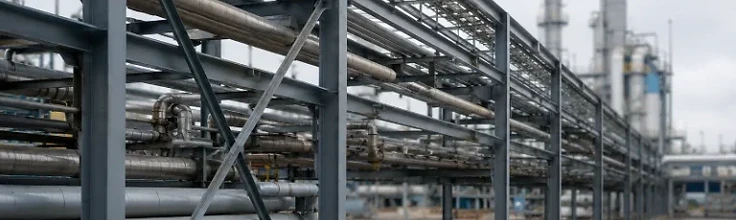

- Water and tailings pipe racks
- Platforms and access structures
- Transport frames for oversized equipment
Built for Large Structures. Planned for Transport.
Crusher and screen supports, processing plant frames and E-house structures can require large or oversize transportation. RoXteel considers fabrication, module size, transportation and site setting together when planning the assembly.
Chutes, bins, hoppers and equipment skids often ship as a partial or full truckload.
Crusher supports and processing plant frames can be planned around permitted transport, modules or a project-specific transport strategy.
Where the assembly allows, design can work around approximately:
These are planning references, not published manufacturing limits. Final size and transportation strategy depend on the assembly and project.
Bring the Drawing. The Assembly. Or the Problem.
RoXteel reviews mining equipment support structures, trusses, chutes, skids and processing plant frames for opportunities around weight, part count, material use, manufacturability, transportation and site assembly. The goal is a simpler structure that is easier to build, ship and repeat.
- Reduce weight and part count
- Improve manufacturability
- Reduce unnecessary material use
- Plan for repeatable production
- Improve transportation strategy
- Reduce site assembly where practical
Built Heavy, Shipped in Modules
Mining structures can carry heavy loads and abrasive material. RoXteel manufactures heavy structural steel and plate assemblies while planning large structures around practical transportation and modular shipment.
Start With the Required Onsite Date
Mining structure lead time is quoted by project because design readiness, engineering requirements, materials, quantity, manufacturing sequence and transportation vary.
RoXteel starts with when the structure needs to reach the site and works backward through design review, materials, production and transportation. Repeatable structures may also create opportunities to standardize production across plants, phases or sites.
Built in Arizona for Mining Projects Nationwide
RoXteel is based in Wittmann, Arizona and supports mining and industrial projects across the United States from the 55 acre All Things Metal campus. RoXteel's approximately 60,000 sq ft manufacturing facility is currently under construction.
- 55acresAll Things Metal campus
- ~60,000sq ftRoXteel manufacturing facility under construction
- NationwideProject support across the United States
Have a Mining Equipment Assembly, Drawing or Recurring Manufacturing Problem?
Bring us the structure, drawing or project requirement. We will start with what needs to be built, how it needs to perform and when it needs to reach the site.
